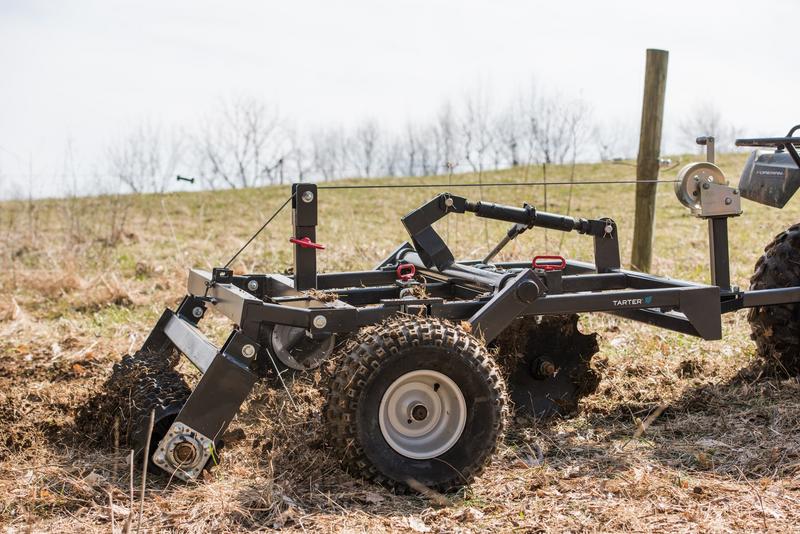

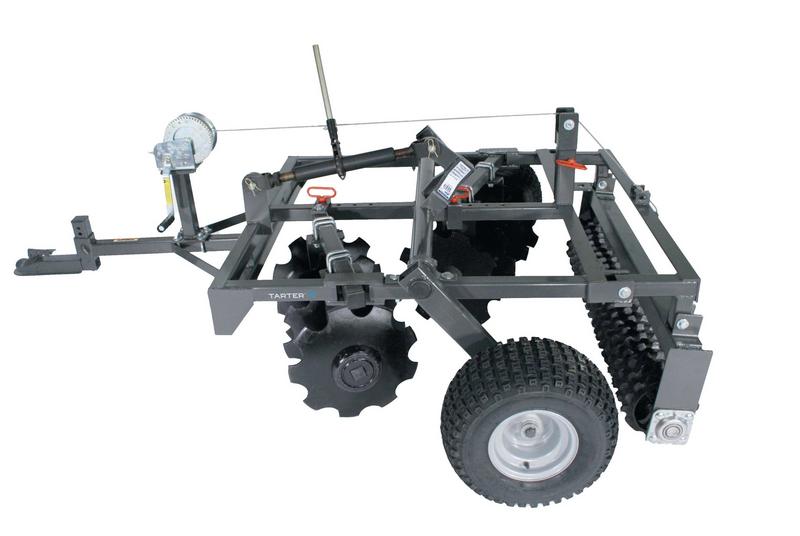

This implement combines the deep cutting ability of the 8-Blade tillage disc with the leveling and smoothing ability of the culti-packer to create game plots and gardens with a single pass. The 16” tillage discs can be adjusted from 0° to 20° with a 48” cutting width.

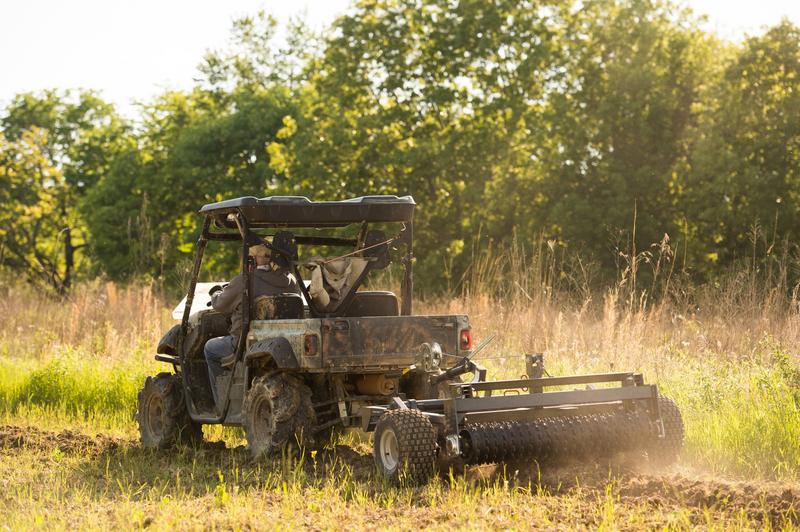

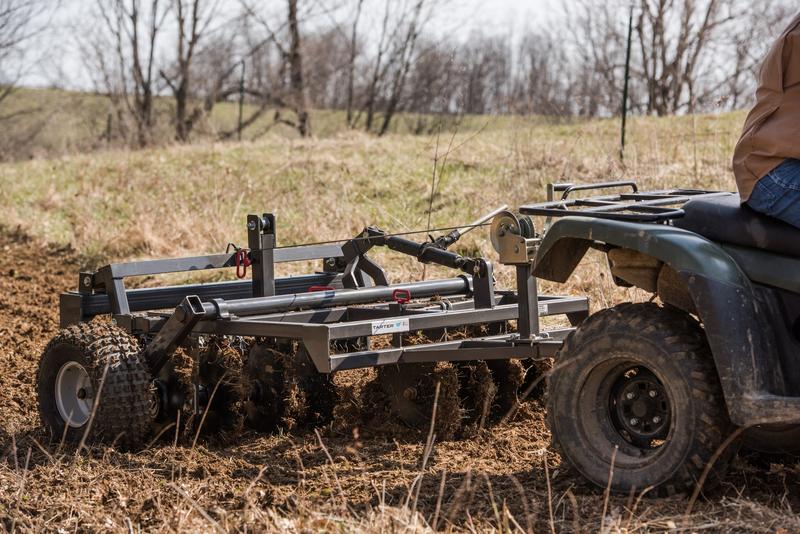

Use a 2” ball for easy hookup to an ATV, UTV or compact tractor. The heavy-duty frame and corrosion-resistant finish stands up to the elements.
The adjustable 13” 4-ply tubeless tires can be lowered for complete ground clearance when towing or moving or can be used to reduce drag depending on the surface.
Ball Hitch
2 in.
Cutting Width
48 in.
Number of Disc Blades
8 disc (4 per gang)
Disc Blade Types
Adjustable 16 in., 3.175 mm notched
Disc Blade Spacing
7.5 in.
2
Disc Axle Bearing Type
Replaceable sealed, 2 per gang
Gang Angle
4 hole adjustment (0, 7.5, 15, 22.5 degree)
Gang Tube
2x2 square tubing
Cultipacker Bearings
2
Cultipacker Wheels
22
Part
ATVCPDC
Length
93 in.
Width
76 in.
Approx. Weight
711 lbs
Height
34 in.
Color
GRAY
Warranty
1 Year
