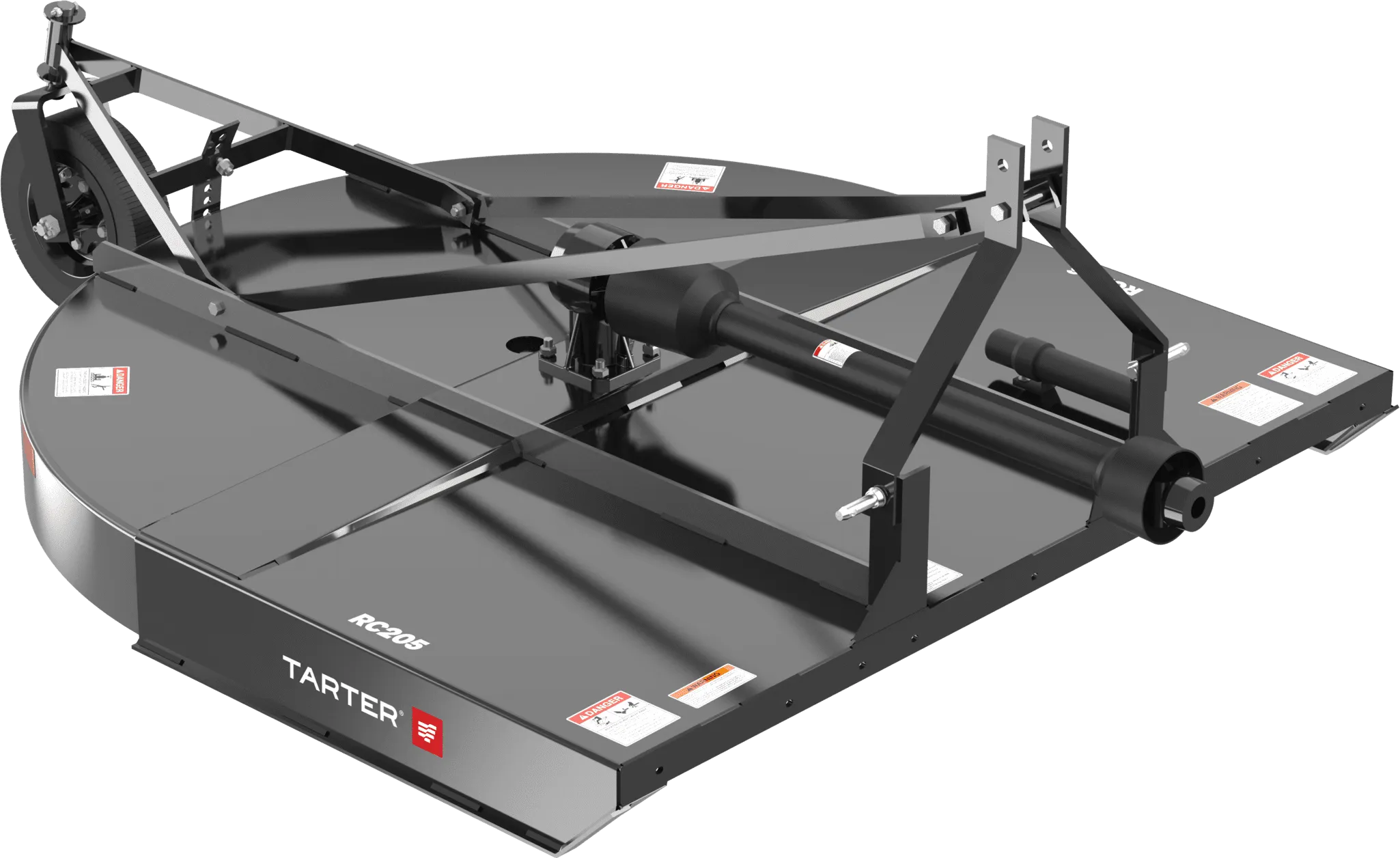

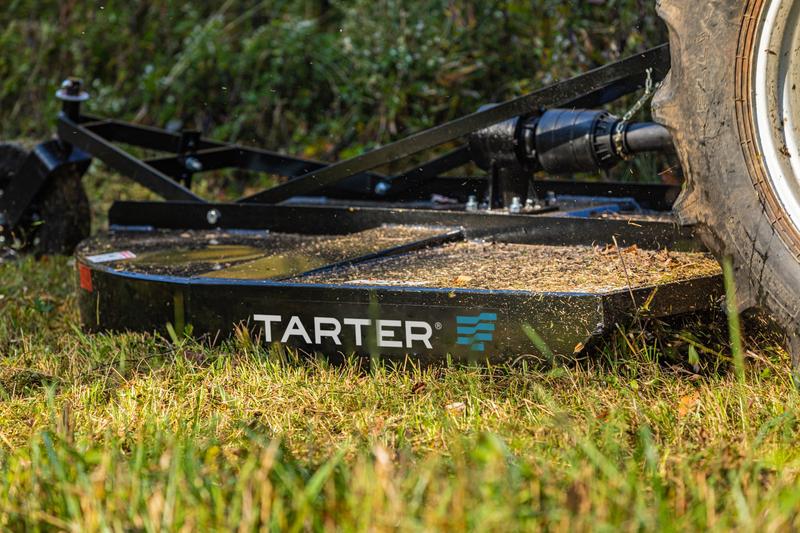

Tarter 200 Series 5 ft. Rotary Cutter

Contact us for price

Stock status: Call Store for Availability

The 200 Series Rotary Cutter is the perfect solution for mowing backfields, creating riding and walking trails, and clearing paths for wildlife management. Cut grass, stalks, and light brush up to 1″ thick with ease. The thick 12GA deck is 7.5″ deep.

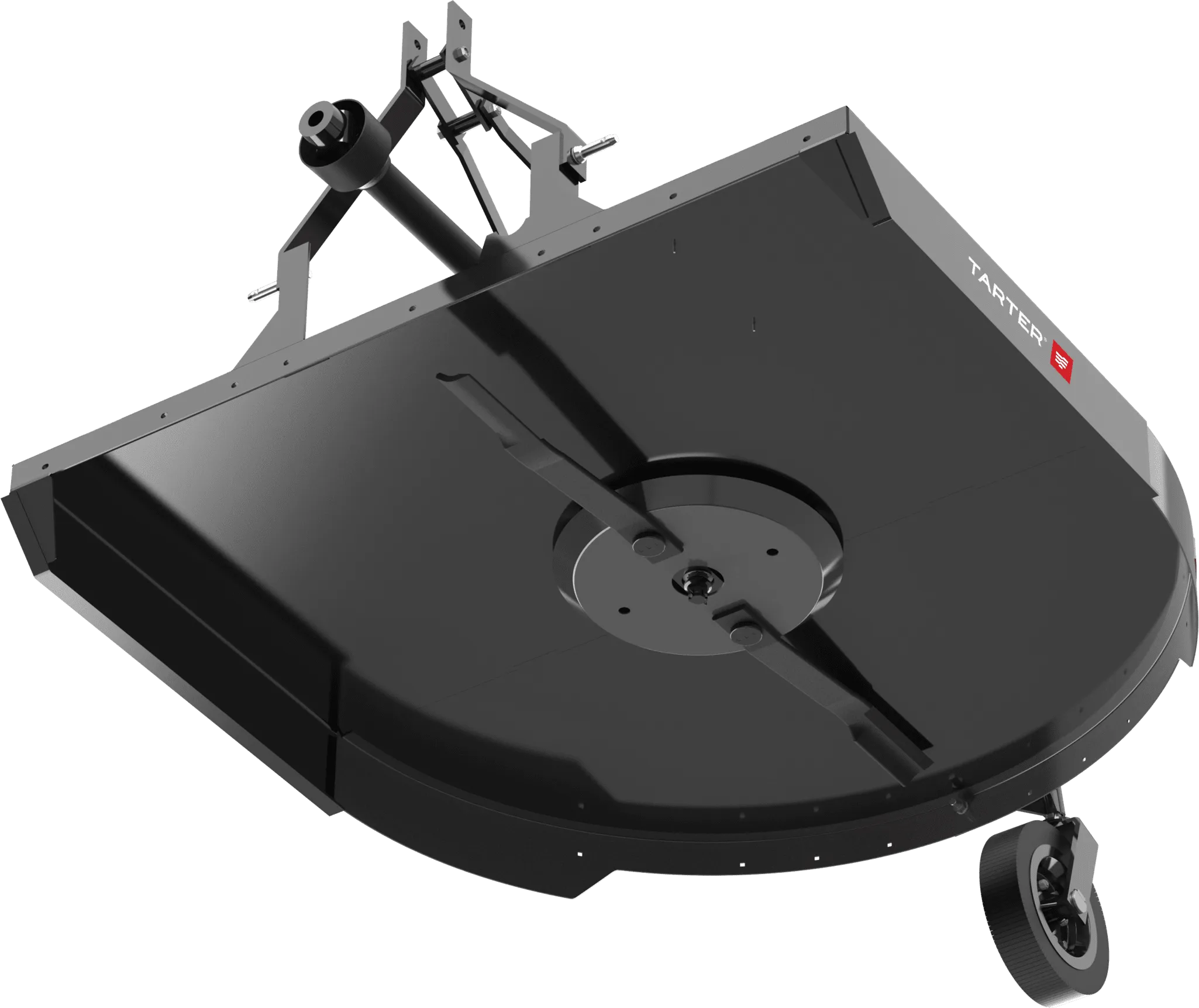

By adjusting the laminated tailwheel height your length of cut can range from 1.5 – 9″. The durable heat-treated blades pivot on the 1/8″ thick steel stump jumper to protect the cutter from unseen obstacles, avoiding damage to the gearbox and blades.

The 45 HP cast iron gearbox contains forged steel gears and features shear bolt protection for the driveline.

This rotary cutter is quick hitch compatible and ideally suited to tractors 20-50 HP. Optional rubber front and metal rear guards available.

Call Us Now

Specs

Tractor Horsepower

20-50

Power Take-Off Speed

540

Hitch Type

Cat 1

Cutting Width

60 in.

Cutting Height

1.5-9 in.

Deck Height

7.5 in.

Driveline

ASAE Cat 4 Shear Bolt Protection

Driveline Protection Options

Shear Bolt

Top Gearbox Construction

45 hp cast iron housing, precision forged steel gears

Top Gearbox Lubrication

EP 80-90W gear oil

Gearbox Lubrication Capacity

23 ounces

Cutting Capacity

up to 1 in.

Deck Material Thickness

12 Ga.

Stump Jumper

1/8 in. Thick, Round 22.3 in. pan-type

Blades

0.5 in. x3 in. Heat Treated Free Swinging w/ Suction Lift.

Blade Tip Speed

12,478 ft./min.

Tailwheel

15 in. Laminated Tire

Safety Guards

Optional Rubber Front/ Metal Rear

Blade Bolt Size

42mm socket

Shear Bolt

0.5 in. x 3.5 in. Grd 2 Hex Bolt

Castle Nut on Gearbox

38mm socket

Part

RC205BL

Length

86 in.

Width

64 in.

Approx. Weight

530 lbs

Color

BLACK

Quick Hitch Compatible

Yes

Warranty

1 Year
