Contact us for price

Stock status: Call Store for Availability

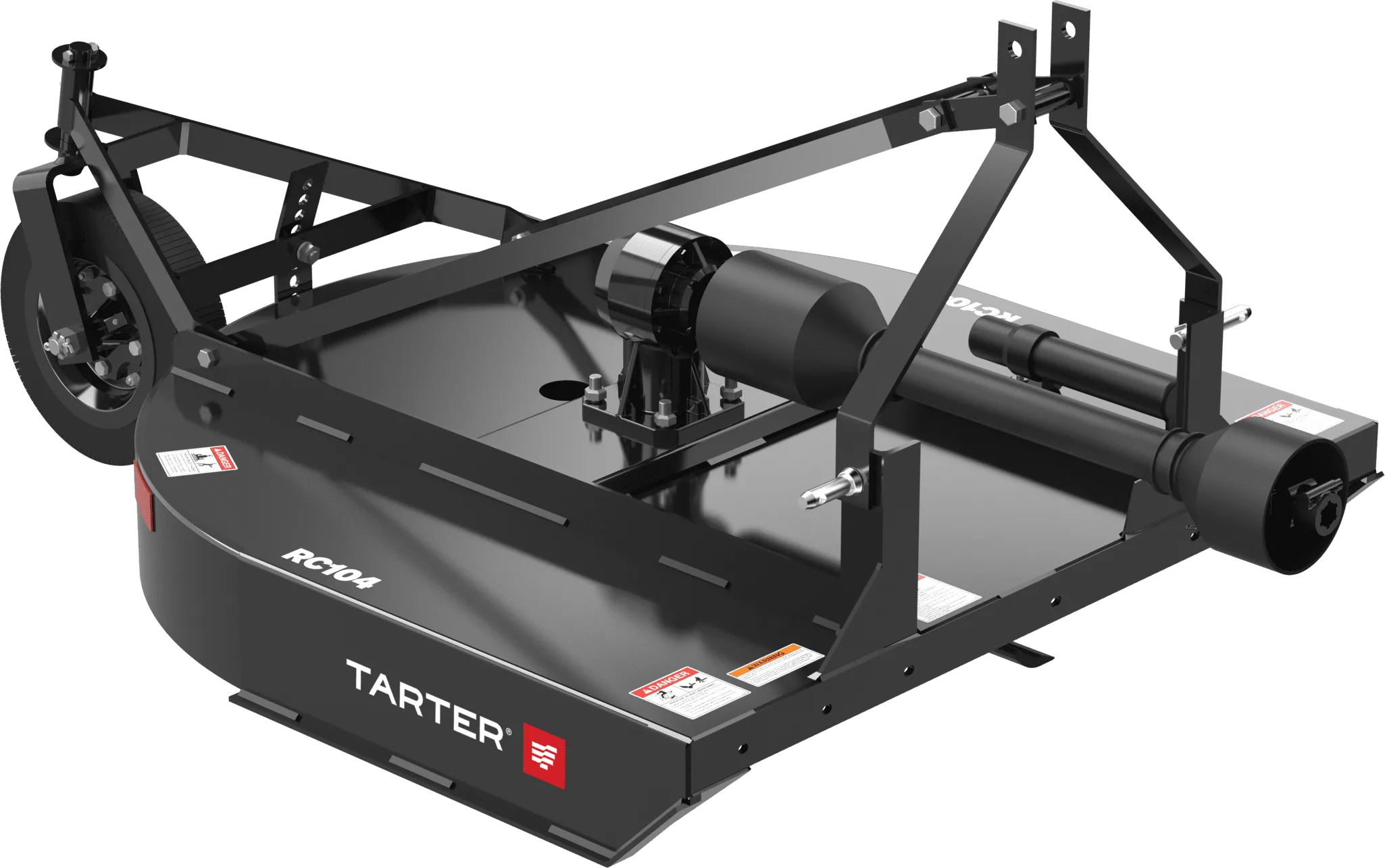

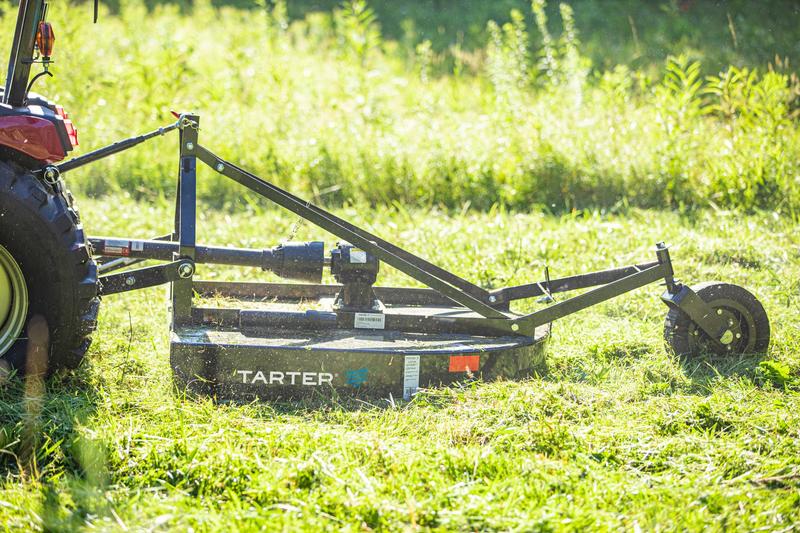

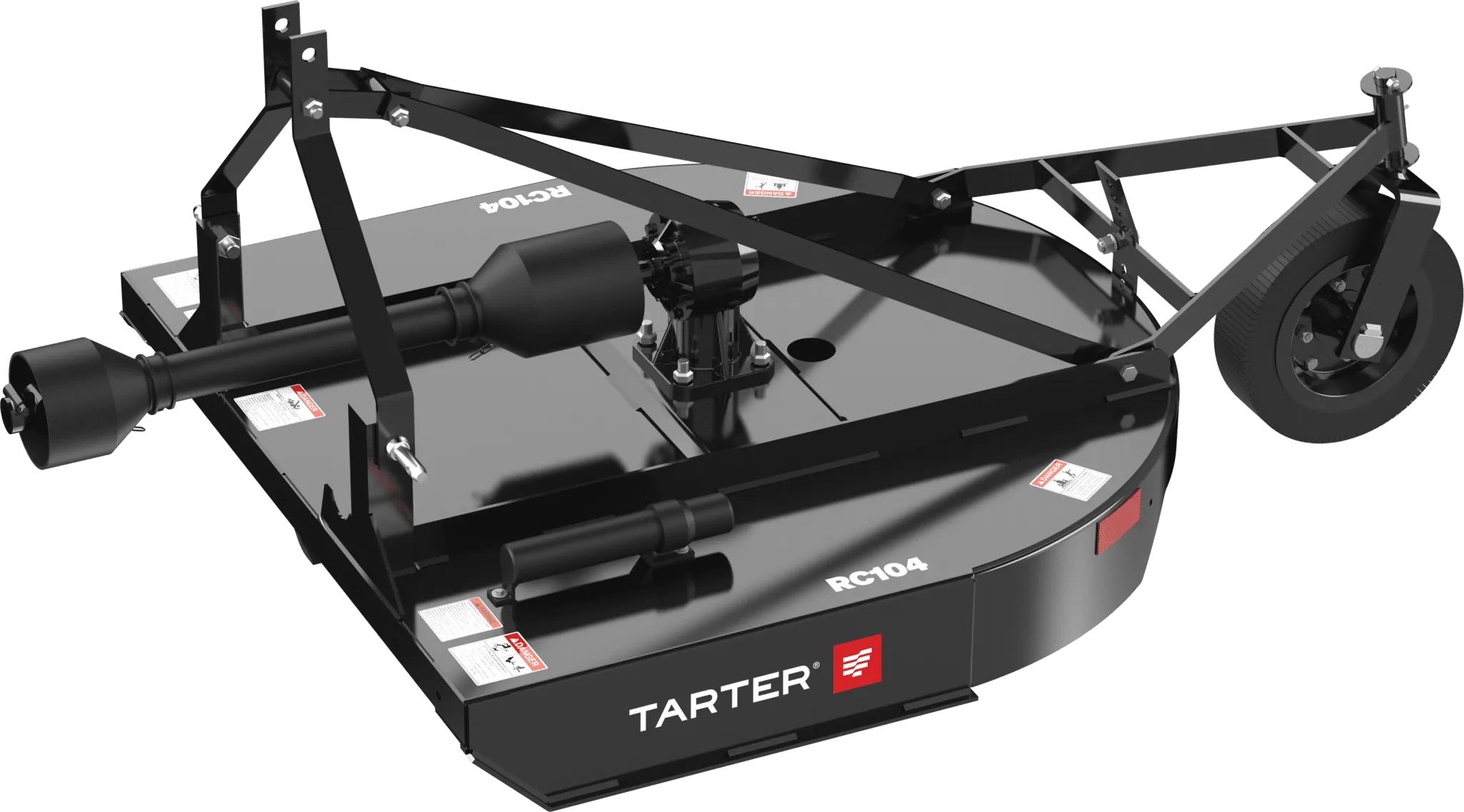

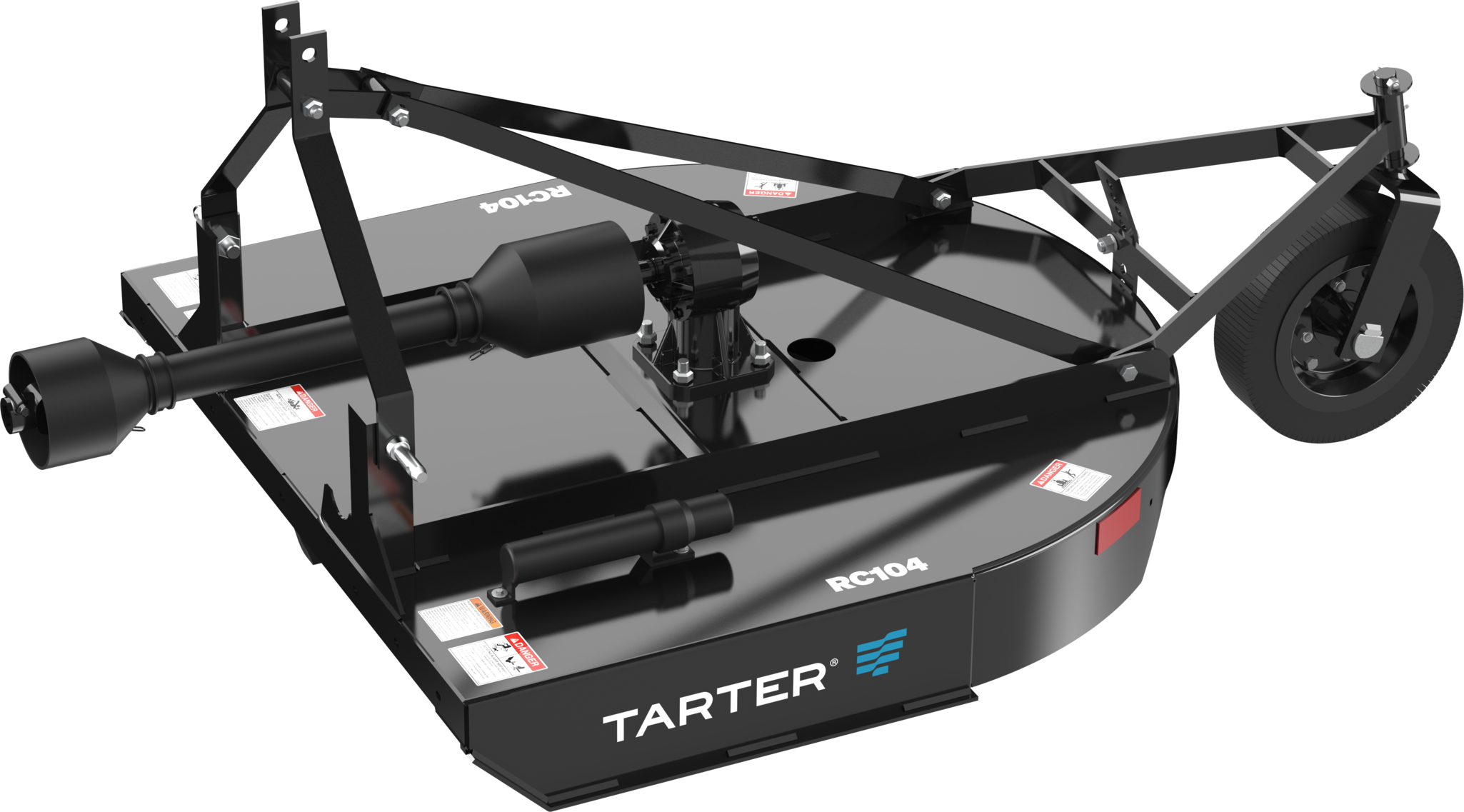

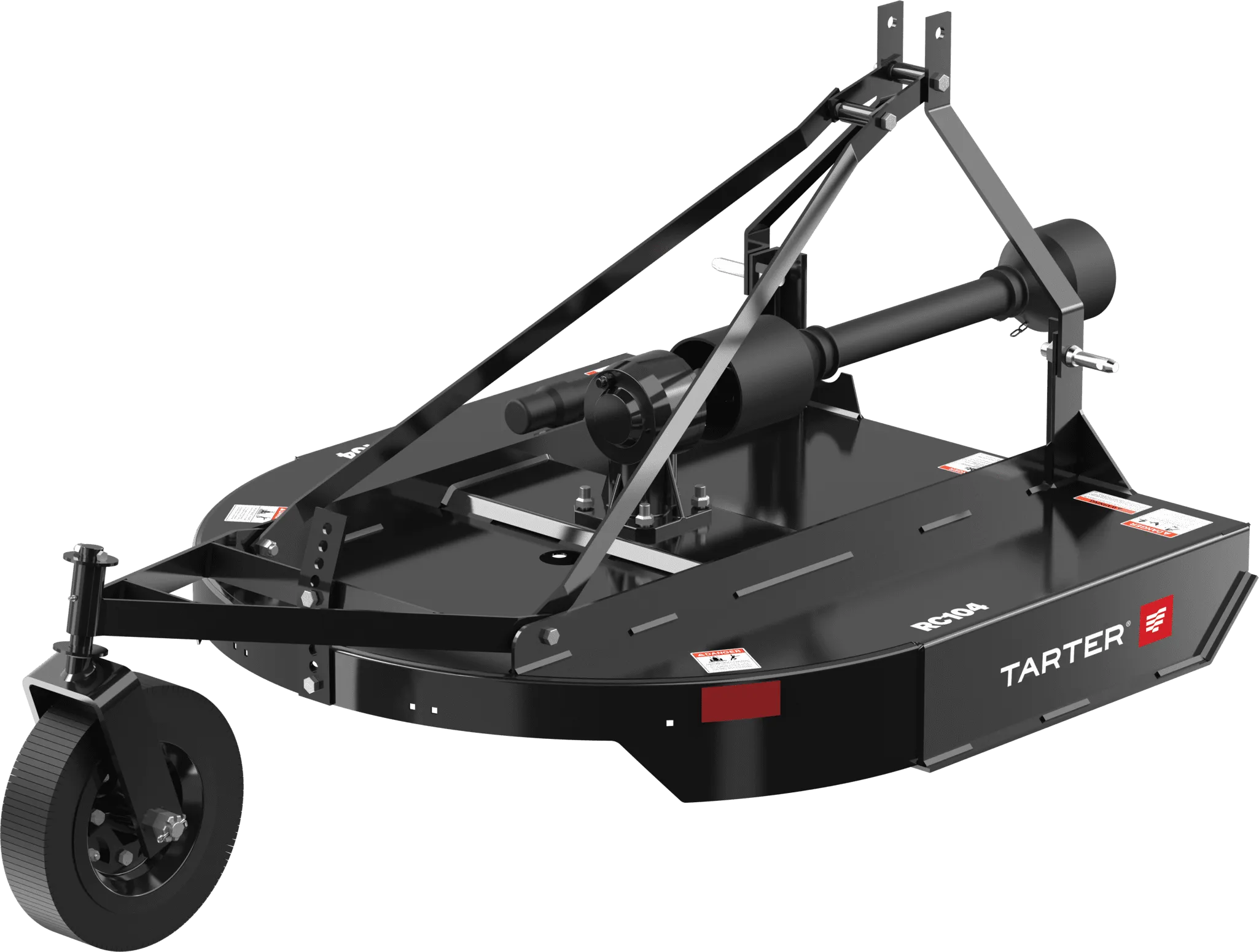

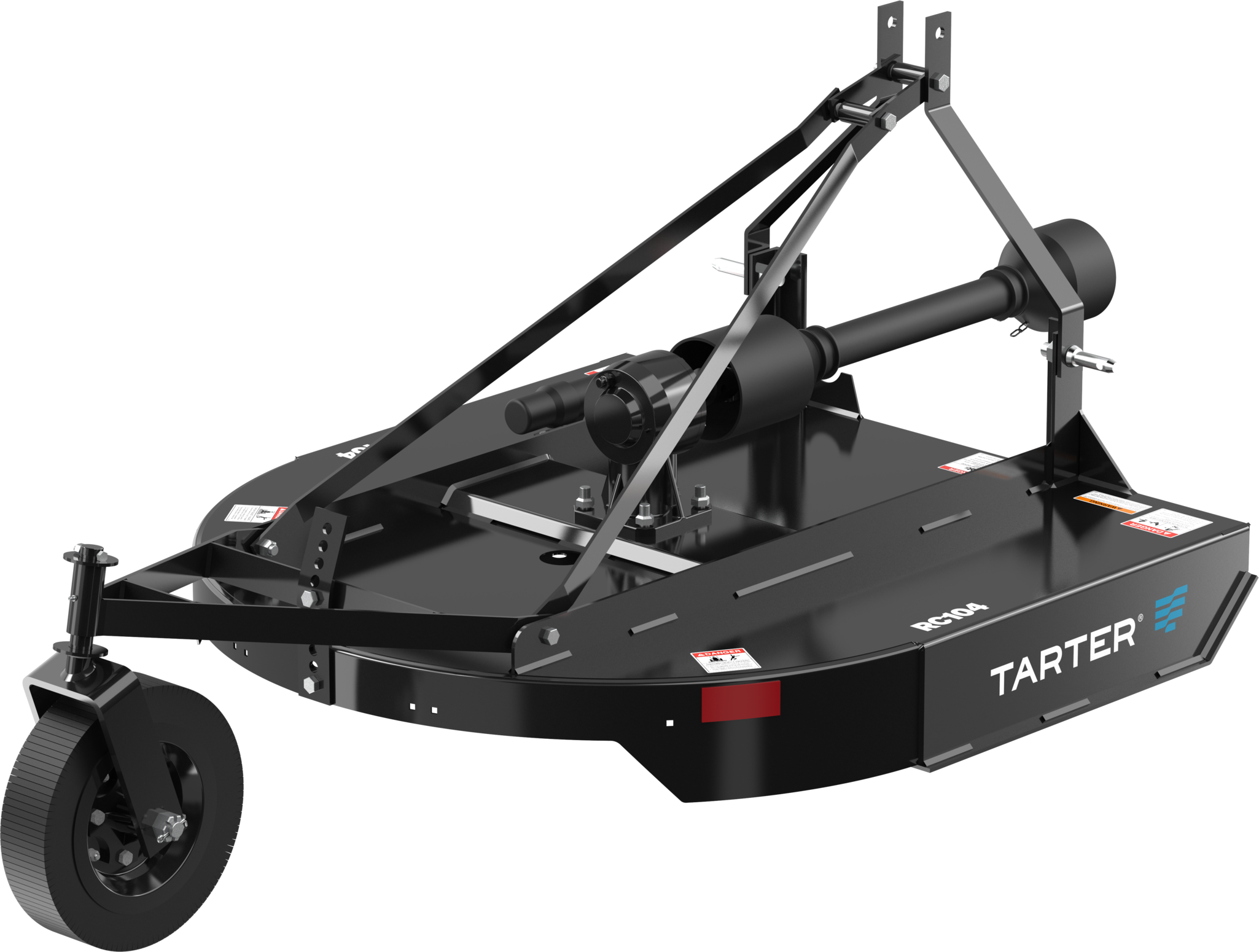

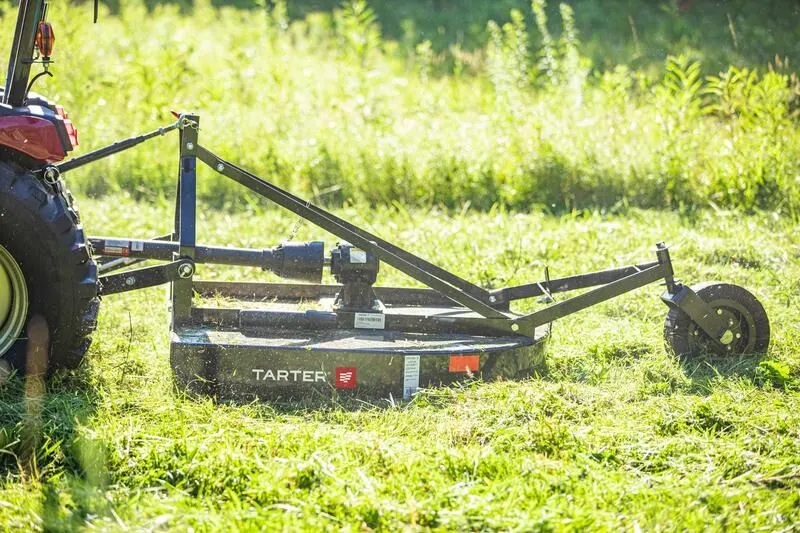

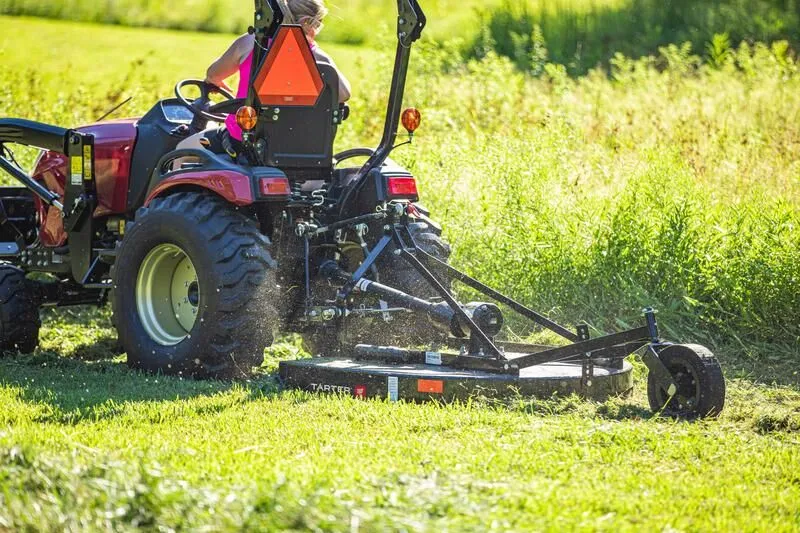

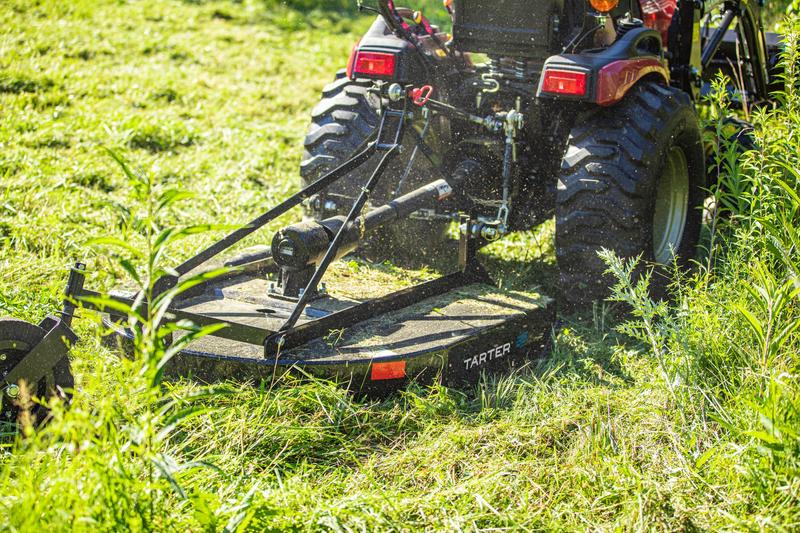

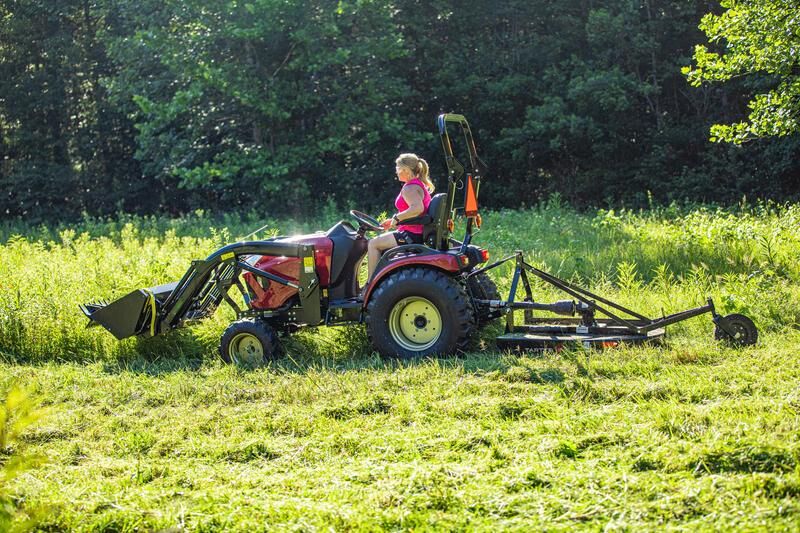

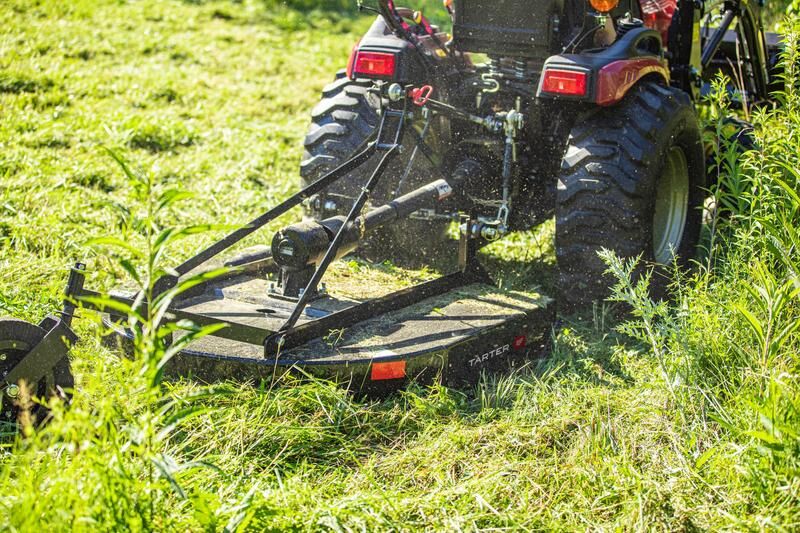

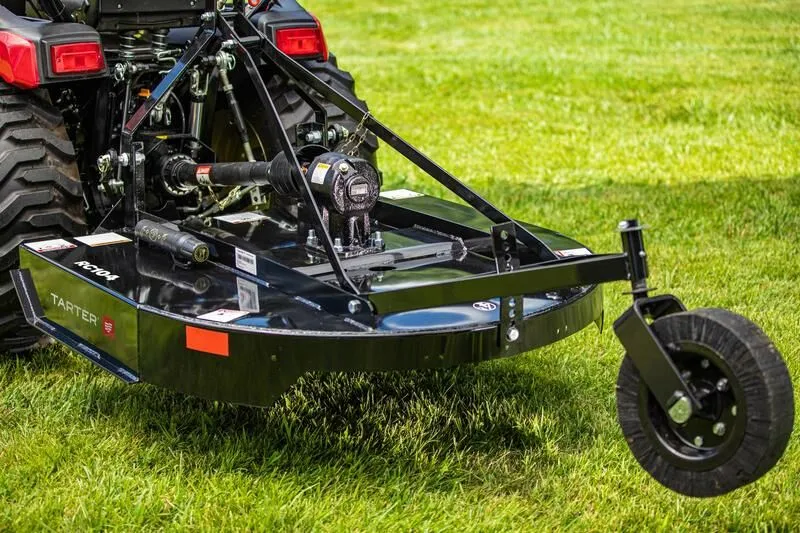

The Tarter 100 Series 4′ Rotary Cutter is the perfect solution for mowing backfields, creating riding and walking trails, and clearing paths for wildlife management. Cut grass, stalks, and light brush up to 1″ thick with ease. The thick 12GA deck is 7.5″ deep.

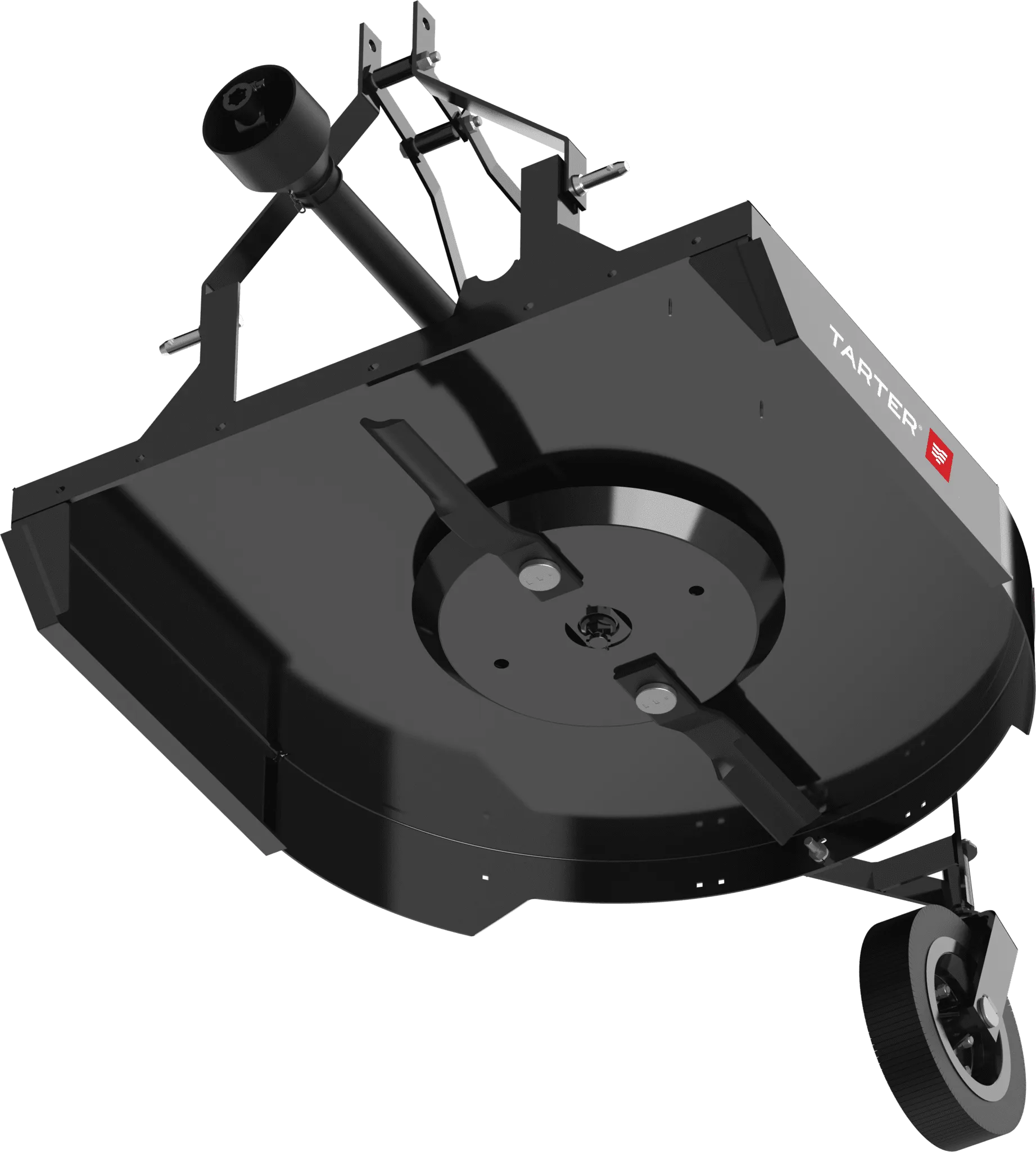

By adjusting the laminated tailwheel height your length of cut can range from 1.5 – 9″. The durable heat-treated blades pivot on the 1/8″ thick steel stump jumper to protect the cutter from unseen obstacles, avoiding damage to the gearbox and blades.

The 45 HP cast iron gearbox contains forged steel gears and features shear bolt protection for the driveline.

This rotary cutter is Cat 1 and Quick Hitch compatible and ideally suited to tractors 18-45 PTO HP. Optional rubber front and metal rear guards available.



Call Us Now

Specs

Tractor Horsepower

18-45

Power Take-Off Speed

540

Hitch Type

Cat 1

Cutting Width

48 in.

Cutting Height

1.5-9 in.

Deck Height

7.5 in.

Driveline

ASAE Cat 4 Shear Bolt Protection

Driveline Protection Options

Shear Bolt

Top Gearbox Construction

45 hp cast iron housing, precision forged steel gears

Top Gearbox Lubrication

EP 80-90W gear oil

Gearbox Lubrication Capacity

23 ounces

Cutting Capacity

up to 1 in.

Deck Material Thickness

12 Ga.

Stump Jumper

1/8 in. Thick, Round 22.3 in. pan-type

Blades

0.5 in. x3 in. Heat Treated Free Swinging w/ Suction Lift.

Blade Tip Speed

9,982 ft./min.

Tailwheel

15 in. Laminated Tire

Safety Guards

Optional Rubber Front/ Metal Rear

Blade Bolt Size

42mm socket

Shear Bolt

0.5 in. x 3.5 in. Grd 2 Hex Bolt

Castle Nut on Gearbox

38mm socket

Part

RC104BL

Length

77 in.

Width

51 in.

Approx. Weight

463 lbs

Color

BLACK

Quick Hitch Compatible

Yes

Warranty

1 Year

Related Content

1

Gearbox requires 23 oz. of EP 80-90W gear oil (not included) and must be filled prior to operation.

For service parts visit: https://tarterparts.com/products/rc104bl
