KIOTI TL750U-PL Loader

KIOTI TL750U-PL Loader

Contact us for price

Stock status: Call Store for Availability

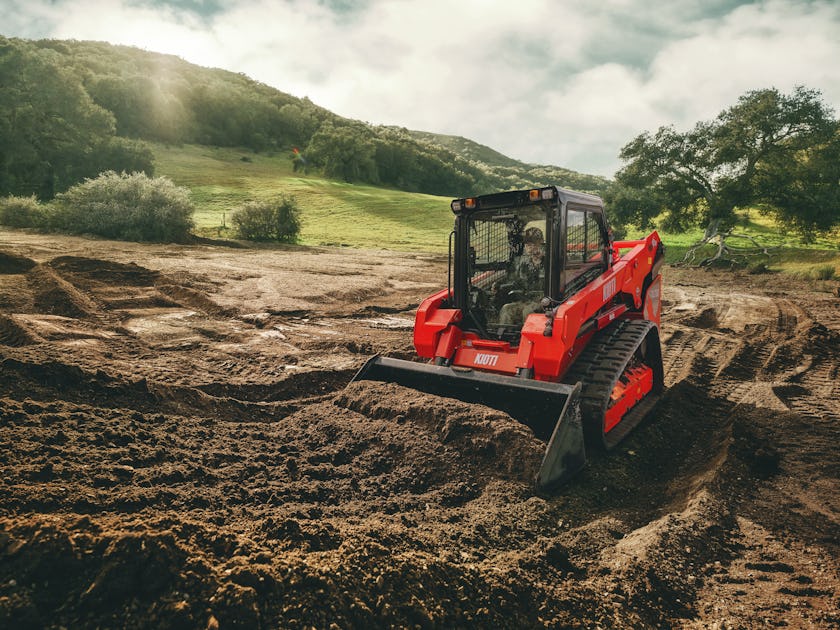

KIOTI’s versatile compact loaders are built for professionals with comfort in mind. Handle tough jobs with ease, thanks to their rugged build, powerful engines, exceptional lift heights, and precision controls. Take on landscaping, construction, and more with confidence.

Drag your finger or mouse to rotate the vehicle.

These Machines are built to complete the job.

KIOTI compact track loaders utilize a powerful 74 horsepower KIOTI engine. This engine, proven over the years in the popular RX-Series tractors, offers excellent performance and proven reliability.

Increased productivity with standard two-speed travel on the KIOTI TL750 allows operators to quickly transition between low-speed precision and power and high-speed transport.

The hydraulic pilot joystick controls on KIOTI compact track loaders offer premium touch and feel, making the machine feel like an extension of the operator. Fingertip controls also give the operator an easy way to control their attachment functions right from the joystick for smooth and effortless operation.

KIOTI compact track loaders come standard with a rearview camera that is seamlessly integrated into the digital display in the cab. The display delivers an on-demand view from behind the loader when traveling in reverse. You can also activate the camera with a push of a button.

The KIOTI TL750 features a wide and comfortable cab, with a sliding overhead door, making it easy for entry and exit. With a high back suspension seat and optional enclosed cab with optional HVAC, operators will find added comfort and reduced fatigue during long days on the job.

As operators take on bigger and more ambitions jobs, they expect their equipment to pave the way. The TL750 boasts powerful hydraulics, ample ROC and excellent traction force.

The KIOTI TL750 comes standard with LED front and rear working lights making it easier for operators to further enhance visibility when operating in low-light conditions.

KIOTI’s sliding front door allows for quick entry and exit. There is also no need to remove the door as it can lock into an open position with ease and unlock when you prefer to enjoy the comforts of the HVAC cab.

Read for yourself what others are saying about their KIOTI.

Everything you need to get anything done.

You’re this close to owning your very own KIOTI.

From parts and service to warranty and financing information, we’re here to help.

Get genuine KIOTI parts and dependable service at your local authorized KIOTI dealer.

Need warranty info on a KIOTI you already own? Or on one you’re about to buy? It’s all right here.

From great rates to cash back offers and more, we want to sell you a KIOTI just as bad as you want to buy one.

Call Us Now

Specs

Engine 11

Engine Model
4HTI4

Engine Manufacturer
KIOTI

Engine Power
73.60 hp (54.90 kW)

Engine Displacement
148.60 cu. in. (2,435 cc)

RPM
2,400 rpm

Fuel Type
Diesel

Aspiration
Intercular

Fuel Capacity
26.40 gal (100 L)

Oil Capacity
2.40 gal (9 L)

Coolant Capacity
1.10 gal (4.20 L)

Radiator Coolant Capacity
2.70 gal (10.40 L)

Hydraulics 6

Lift Arm Path
Vertical

Lift Control
ISO Pilot

Tank Capacity
10 gal (38 L)

Pressure
3,335 psi (230 bar)

Pump Capacity
21.90 gpm (82.90 lpm)

Hydraulics Power
41.80 hp (31.10 kW)

Operating Specs 11

Tipping Load
6,570 lb (2,980 kg)

Rated Operating Capacity (50% of Tip Load)
3,285 lb (1,490 kg)

Rated Operating Capacity (35% of Tip Load)
2,299.50 lb (1,043 kg)

Breakout Force, Tilt (Bucket)
5,512 lb (2,500 kg)

Breakout Force, Lift
5,016 lb (2,275 kg)

Rated Operating Capacity with Optional Counterweights
2,377 lb (1,078 kg)

Traction Force
6,482 lb (2,940 kg)

Travel Speed Forward Speeds
2

Travel Speed Reverse Speeds
2

Travel Speed Min Speed
4.70 mph (7.50 km/h)

Travel Speed Max Speed
7.10 mph (11.50 km/h)

dimensions 28

Length of Track on Ground
56.50 in (1,435 mm)

Overall Length of Track
176.10 in (4,472 mm)

Length without Bucket
116.10 in (2,950 mm)

Length with Bucket
144.70 in (3,675 mm)

Height with Cab & Beacon
85.70 in (2,178 mm)

Height with Cab
81.90 in (2,080 mm)

Height Max
163.80 in (4,160 mm)

Hinge Pin Height at Max Lift
130.30 in (3,310 mm)

Hinge Pin Height at Carry
203 in (5,156.20 mm)

Reach at Max Lift and Dump
43.20 in (1,098 mm)

Clearance at Max Lift and Dump
101.80 in (2,585 mm)

Ground Clearance
8.70 in (220 mm)

Departure Angle
25 °

Dump Angle Max
42 °

Width
70.90 in (1,800 mm)

Turning Radius Center to Rear
67.30 in (1,709 mm)

Turning Radius Center to Coupler
57.10 in (1,450 mm)

Turning Radius Center to Bucket
87.50 in (2,223 mm)

Rack Back Angle at Max Height
88 °

Bucket Pin Reach at Max Lift
23.50 in (597 mm)

Width with Bucket
74.40 in (1,890 mm)

Rack Back Angle at Ground Level
29 °

Front Tread
55.10 in (1,400 mm)

Rear Tread
55.10 in (1,400 mm)

Track Width
15.70 in (400 mm)

Ground Contact Area
889.70 in² (0.57 m²)

Operating weight with operator
9,689.30 lb (4,395 kg)

Operating weight without operator
9,524 lb (4,320 kg)
